Din 11850 X5crni1810 Paslanmaz Çelik Boru / Boru Gıda Endüstrisi İçin Sorunsuz
Ürün Ayrıntıları

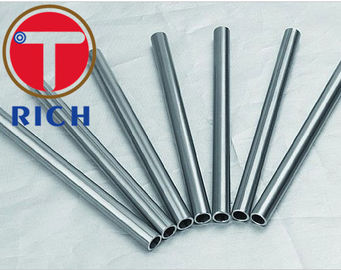

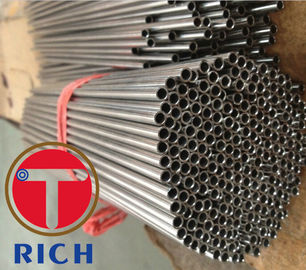

Yuvarlak paslanmaz çelik boru
,stainless tube steel
DIN 11850 Gıda endüstrisi için paslanmaz çelik borular boyutları,malzemeler
Malzemeler:
X5CrNi1810 - malzeme numarası 1.4301
X6CrNiMoTi17122 - malzeme numarası 1.4571
X6CrNiMo17122 - malzeme numarası 1.4401
X2CrNiMo18143 - malzeme numarası 1.4435
X6CrNiTi1810 - malzeme numarası 1.4541
En az sipariş miktarı: 5 MT
Ödeme Şartları: L/C veya T/T
Tedarik Yeteneği: Ayda 700 MT
Teslim süresi: FOB,CFR,CIF uygulanabilir
30~60 gün detay PO miktarına göre
TABLİK 1 Boruların boyutu ve izin verilen sapmaları
| İsimsel | Seriler | Dayanıklılık | Ağırlık | not | ||||
| 1 | 2 | 3 | OD.dev | Duvar kalınlığı, dev. | ||||
| 10 | 12 |
|
| ±0.12 | 1.0 | ±10% | 0.27 | Bu nominal çap aralığı için 1. seriye göre daha büyük duvar kalınlıklarına sahip borular mevcut boru standartlarından seçilmelidir. |
|
| 13 |
| ±0.3 | 1.5 | ±10% | 0.43 | ||
|
|
| 14 | ±0.3 | 2.0 | ±10% | 0.60 | ||
| 15 | 18 |
|
| ±0.12 | 1.0 | ±10% | 0.42 | |
|
| 19 |
| ±0.3 | 1.5 | ±10% | 0.66 | ||
|
|
| 20 | ±0.3 | 2.0 | ±10% | 0.90 | ||
| 20 | 22 |
|
| ±0.12 | 1.0 | ±10% | 0.51 | |
|
| 23 |
| ±0.3 | 1.5 | ±10% | 0.81 | ||
|
|
| 24 | ±0.3 | 2.0 | ±10% | 1.10 | ||
| 25 | 28 |
|
| ±0.15 | 1.0 | ±10% | 0.66 | |
|
| 29 |
| ±1% | 1.5 | ±10% | 1.03 | ||
|
|
| 30 | ±0.3 | 2.0 | ±10% | 1.40 | ||
| 32 | 34 |
|
| ±0.15 | 1.0 | ±10% | 0.82 | |
|
| 35 |
| ±1% | 1.5 | ±10% | 1.26 | ||
|
|
| 36 | ±1% | 2.0 | ±10% | 1.70 | ||
| 40 | 40 |
|
| ±0.2 | 1.0 | ±10% | 0.97 | |
|
| 41 |
| ±1% | 1.5 | ±10% | 1.50 | ||
|
|
| 42 | ±1% | 2.0 | ±10% | 2.00 | ||
| 50 | 52 |
|
| ±0.2 | 1.0 | C10% | 1.26 | |
|
| 53 |
| ±1% | 1.5 | ±10% | 1.90 | ||
|
|
| 54 | ±1% | 2.0 | ±10% | 2.60 | ||
| 65 | 70 |
|
| ±0.3 | 2.0 | ±10% | 3.43 | |
| 80 | 85 |
|
| ±0.3 | 2.0 | ±10% | 4.16 | |
| 100 | 104 |
|
| ±0.3 | 2.0 | ±10% | 5.03 | |
| 125 | 129 |
|
| ±0.4 | 2.0 | ±10% | 6.36 | |
| 150 | 154 |
|
| ±0.4 | 2.0 | ±10% | 7.49 | |
Sözlü Standartlar:
DIN 2413 Çelik borular iç basınca dayanacak duvar kalınlığının hesaplanması
DIN 17456 Genel gereksinimler için dikişsiz yuvarlak paslanmaz çelik borular teknik özellikler
DIN 50049 Malzeme test sertifikası
-
