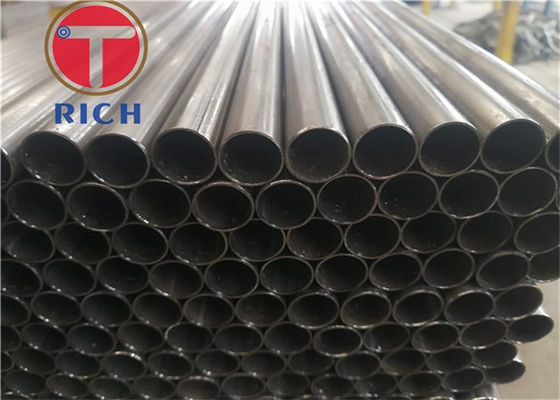

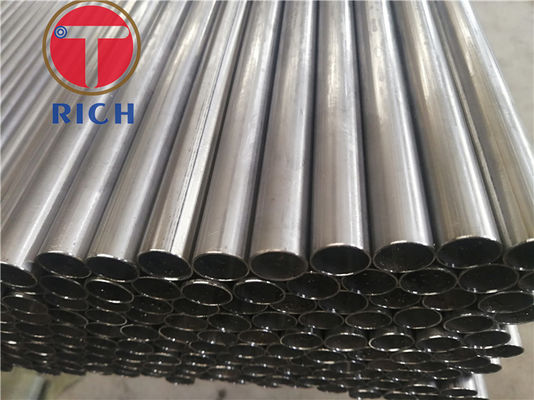

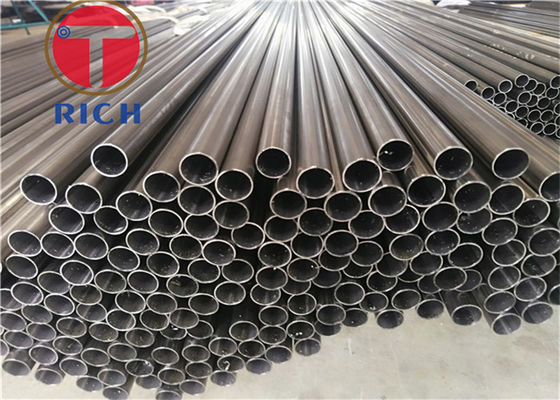

Dn200 Astm 790 2507/2205/31803/32750 Dubleks Paslanmaz Çelik Boru
Temel Özellikler
Menşe Yeri:
Çin
Marka Adı:
Torich
Sertifikasyon:
ISO9001 ISO14001 TS16949
Model Numarası:
ASTM A790
Ticaret Mülkleri
Minimum Sipariş Miktarı:
2 ton
Fiyat:
Negoticable
Ödeme Şartları:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Tedarik Yeteneği:
Aylık 500 ton
Ürün Özetleri
Dn200 Astm 790 2507 / 2205 / 31803 / 32750 Dupleks Paslanmaz Çelik Boru Ürün Adı: Dn200 Astm 790 2507 / 2205 / 31803 / 32750 Dupleks Paslanmaz Çelik Boru Standart: ASTMA790 Malzeme: SS201/301/302/321/304/304L/314/316/316L/310/310S/430 Duplex UNS S31803/S32205/S32750/S32760 vb. Boyut aralığı: Aşırı ...
Ürün Ayrıntıları
Vurgulamak:
2507 Dupleks paslanmaz çelik boru
,31803 Çelikten iki katlı boru
Product Name:
Dn200 Astm 790 2507/2205/31803/32750 Dubleks Paslanmaz Çelik Boru
Keyword:
dubleks çelik boru
Type:
DİKİŞSİZ VE KAYNAKLI
Shape:
yuvarlak
Length:
Müşterinin İsteğine Göre
Material:
SS201 / 301/302/321/304 / 304L / 314/316 / 316L / 310 / 310S / 430 Dubleks UNS S31803 / S32205 / S32
Application:
Dekorasyon, İnşaat, Sanayi, Kimya, Akışkan Boru
End:
sade
Ürün Tanımı
Dn200 Astm 790 2507 / 2205 / 31803 / 32750 Dupleks Paslanmaz Çelik Boru
Ürün Adı: Dn200 Astm 790 2507 / 2205 / 31803 / 32750 Dupleks Paslanmaz Çelik Boru
Standart: ASTMA790
Malzeme: SS201/301/302/321/304/304L/314/316/316L/310/310S/430 Duplex UNS S31803/S32205/S32750/S32760 vb.
Boyut aralığı:
Aşırı doz:10.3mm - 1219mm
W.T.:1.24 mm - 59.54 mm
Uzunluk: Müşteriye göre.
Uygulama:Çitler, balustradalar, mobilyalar, çitler, dekorasyonlar, inşaatlar, gıda endüstrisi vb.
Kimyasal bileşim,%
| UNS İsimlendirme | C | Evet. | M | P | S | Kr | Ni | Mo. | N | Cu |
| En fazla | En fazla | En fazla | En fazla | En fazla | ||||||
| S31803 (F51) | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
| S32205 (F60) | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
| S32750 (F53) | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 en fazla |
| S32760 (F55) | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
| DN | NPS ((Inç) | D ((mm) | SCH5S | SCH10S | SCH40S | CYBD | SCH40 | SCH80 | XS | SCH80S | SCH160 | XXS |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 18.26 | 21.95 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 12.70 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 9.27 | 9.27 | 9.27 | 15.09 | 12.70 | 12.70 | 28.58 | 25.40 |
