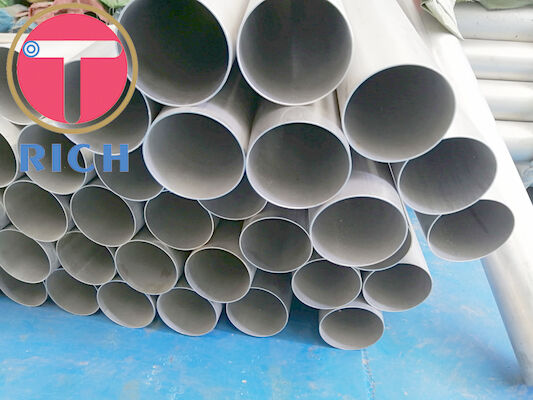

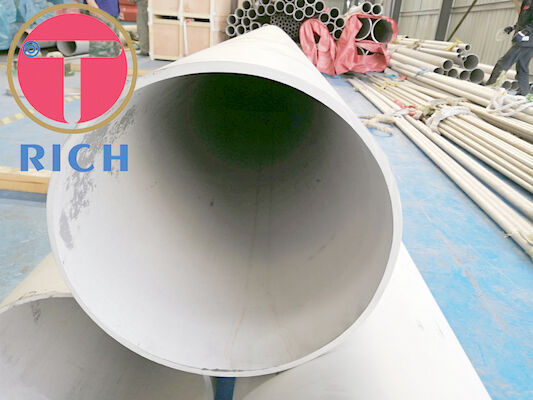

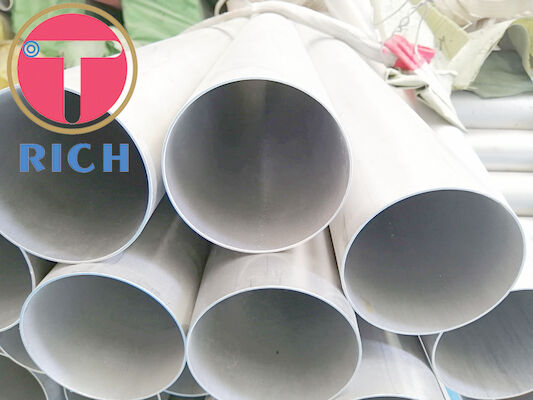

İnşaat Yağı Arıtma 310S 6.35mm Paslanmaz Çelik Boru
Ürün Ayrıntıları
6.35mm paslanmaz çelik boru
,310s paslanmaz çelik boru
,İnşaat Yağı Arıtma 310S Tüp
İnşaatPetrol RafinasyonuBüyük çaplı 310S paslanmaz çelik borular
Büyük çaplı düz dikişli kaynaklı borunun üretim süreci:
Çelik bobin→ Yeniden test→ Düz Açık ve Çapraz Kısma→ Kısma (Uzunluklı Kısma)→ Kenar Planlaması ve Dökme→
Plakanın Butt kaynak→ Forming (Bending/Reeling)→ End Squaring&Tack kaynak→ kaynak dikiş temizleme→
Otomatik kaynak→ Radyografik Test→ Çözüm Tedavisi→ Yuvarlatma→ Düzleştirme→ Sonuna Bakışlı Tedavi→
Hidrostatik Test→ Turşulama Passivasyon→ Dökme ve kurutma→ Radyografik Test→ Bitmiş Ürün Testleri→ İşaretleme→
Paketleme→ Bitmiş Ürün Depolama→ Nakliye
1Sınıf:
304/304L/304H, 316/316L, 321/321H, 317/317L, 347/347H, 309S, 310S, 2205, 2507, 904L, 430J1L, 444, 445J2, 44660 (1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4541, 1.4833, 1.4878, 1.4550, 1.4462, 1.4438, 1.4845)
2Boyutu:
OD 6,35 mm - 114 mm,
WT 0.2 mm - 3.5 mm
3Standart:
ASTM A213, A249, A269, A312, A511, A789, A790, A376,
EN 10216-5, EN 10297, DIN 17456, DIN 17458,
JISG3459, JIS GS3463, GS3467, JIS G3448,
GOST 9940, GOST 9941
4Sertifika:
ISO9001, ISO14001, OHSAS18001, PED, AD2000 vb.
| Boyut aralığı |
Aşırı doz:NPS 1/8 -80, BN 6 - 2000, 10.3 - 2030
WT:Sch5s-Sch160s, SchXXH, STD,XS,XXS
Uzunluk:Kişiselleştirme
|
| Sınıf |
S32750, 00Cr25Ni7Mo4N, 022Cr25Ni7Mo4N, 1.441, 1.4307/1.4301/304L/3, S30408/S30403, 0Cr18Ni9DQ, 1.4948/304H, 07Cr19Ni10, S30409, 1.4948, 06Cr23Ni13,
S30908, SUS309S, SUS310S, 1.4845, S31008, S31008S, 06Cr25Ni20, 0Cr25Ni20, 1.4401/1.4404/316/31,
S31635, SUS316Ti, 1.4571, 1.4571/316Ti, S31703, 022Cr19Ni13Mo3, 00Cr17Ni12Mo2,
S31703, SUS317L, 1.4438, S41008, SUS410S, 1.4, 06Cr13, S11306, 0Cr13, S42000, SUS420J1, 1.4021SUS420J2, 1.4028,
S43020, 430F, SUS430F, 1.4104, ,
301, 302, 303, 305, 309, 310, 316, 317, 321, 347, 403, 405, 416, 431, 444,
2205, 2507, 304/304L, 304DQ, 304H, 309S, 310S, 316/316L, 316Ti, 317L,
410S, 420J1, 420J2, 430F, 254Smo, 1.4529,
HC276, 800, 825, 600, 601, 718, 750, 400, 630, XM19, C4,
S30815, S31254, 174PH, F51, F60, F53, S32760, 253MA, HC2000, 800H, 926,
GH2132, GH4169, GH3030, GH3039, GH4151, N04400, HB3, 0Cr13Ni5Mo, N08367, N08810
|
Uygulama:
Elektrik enerjisi, petrol rafineri, nükleer enerji, içme suyu,
Offshore Mühendisliği ve Denizcilik, Doğal Gaz, Kağıt Üretimi, İnşaat
-
