TORICH GB / T12459 TP304 304L Paslanmaz Çelik 90 Derece Lr Dirsek DN15 DN600
Temel Özellikler
Menşe Yeri:
Zhejiang, Çin
Marka Adı:
TORICH
Sertifikasyon:
ISO9001, ISO14001, TS16949
Model Numarası:
GB / T12459
Ticaret Mülkleri
Minimum Sipariş Miktarı:
5Tons
Fiyat:
USD10-100/PC
Ödeme Şartları:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Tedarik Yeteneği:
Yılda 2000 Ton
Ürün Özetleri
TORICH GB/T12459 DN15 ila DN600 TP304 304L Paslanmaz çelik 90 derece dirseği Boyut:dikişsiz1/2'~12' (DN15-DN600) kaynaklı1/2'~12' (DN15~DN1200) Standart:GB/T12459, GB/T13401, GB14383, SH 3408, SH 3409, EN10253-4 EN 10357, ASME B16.9, DIN2605, DIN2607, JIS2312, JIS2313, MSS SP-43 Kalınlığı:SCH5S...
Ürün Ayrıntıları
Vurgulamak:
Paslanmaz Çelik 90 Derece Lr Dirsek
,DN15 90 Derece Lr Dirsek
,GB / T12459 90 Derece Lr Dirsek
Keyword:
paslanmaz çelik dirsek
Grade:
316L 304L 321 310S 904L 2205 vb.
Surface:
Lehçe
Dimension:
DN15 ila DN600
Thickness:
SCH5S-SCH160
Type:
1.0D 1.5D 3D 5D 8D 10D
Raw Material:
Dikişsiz / Welde Boru, Çelik Sac, Dövme
Application:
Petrokimya tesisi
Ürün Tanımı

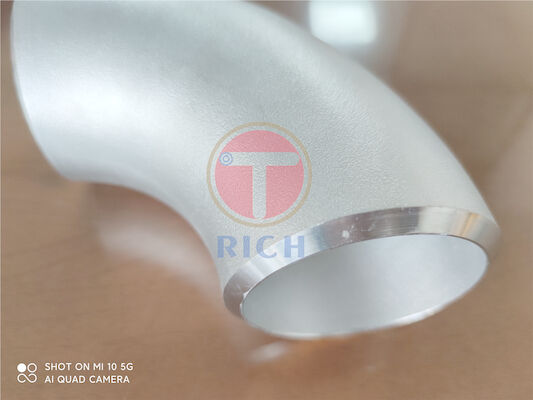

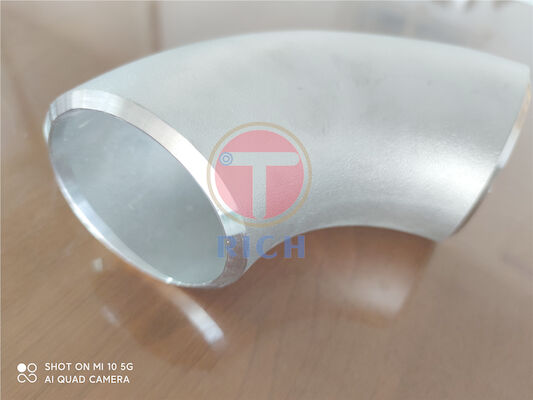

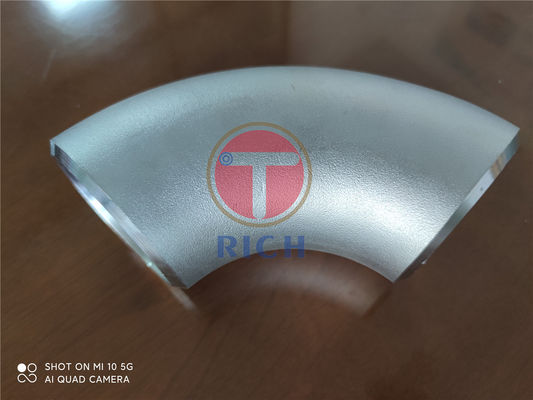

TORICH GB/T12459 DN15 ila DN600 TP304 304L Paslanmaz çelik 90 derece dirseği
Boyut:dikişsiz1/2'~12' (DN15-DN600)
kaynaklı1/2'~12' (DN15~DN1200)
Standart:GB/T12459, GB/T13401, GB14383, SH 3408, SH 3409, EN10253-4 EN 10357,
ASME B16.9, DIN2605, DIN2607, JIS2312, JIS2313, MSS SP-43
Kalınlığı:SCH5S-SCH160
Malzeme: 317/L; 304/L; 316/L; 310/S; 309/S; 347/H; 321/321/H; 904/L;2205 vb.
Çiğ madde:Dikişsiz boru, Kaynaklı boru, Çelik levha, Kalıplama (Yüksek basınçlı)
Üretim süreci:Ekstrüzyon kalıplama, presleme, soğuk çalışma, işleme, sıcak bükme, kaynak, ısı işleme.
Uygulamalar:Petrokimya Santrali, Fosil Enerji Santrali, Gıda Makineleri, Gryogenik, Petrol Rafinasyonu, Nükleer Enerji Santrali
| DN | NPS | Aşırı doz | Merkezden sonuna kadar | Merkezden Merkeze |
| 25 | 1 | 32 33.4 | 25 | 50 |
| 32 | 1 1/4 | 38 42.2 | 32 | 64 |
| 40 | 1 | 45 48.3 | 38 | 76 |
| 50 | 2 | 57 60.3 | 51 | 102 |
| 65 | 2 1/2 | 76 73 | 64 | 128 |
| 80 | 3 | 89 | 76 | 152 |
| 90 | 3 1/2 | 101.6 | 89 | 178 |
| 100 | 4 | 108 114 | 102 | 204 |
| 125 | 5 | 133 141.3 139.7 | 127 | 254 |
| 150 | 6 | 168.3 159 165 | 152 | 304 |
| 200 | 8 | 219 216 | 203 | 406 |
