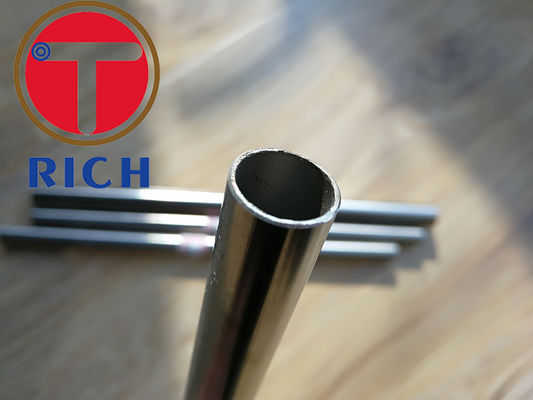

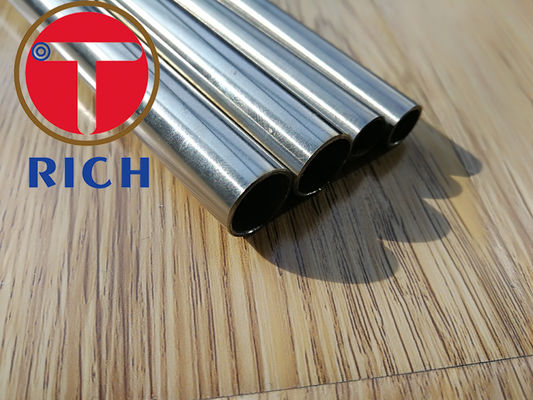

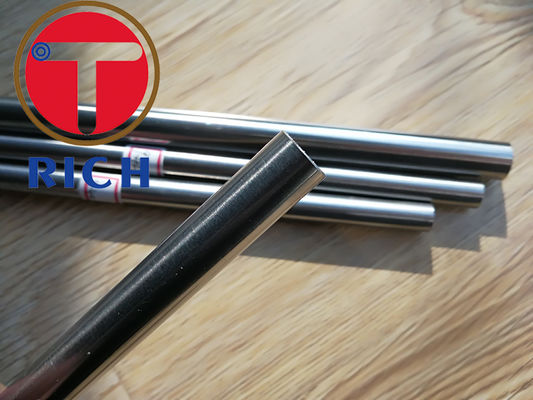

ASTM A789 A789M-05B 304 316 Paslanmaz Çelik Boru
Temel Özellikler
Menşe Yeri:
ZHEJIANG ÇİN
Marka Adı:
TORICH
Sertifikasyon:
ISO 9001
Model Numarası:
ASTM A789
Ticaret Mülkleri
Minimum Sipariş Miktarı:
1 TON
Fiyat:
USD 3000-4000 Per Ton
Ödeme Şartları:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Tedarik Yeteneği:
Aylık 500 ton
Ürün Özetleri
ASTM A789/A789M-05B kare yuvarlak bölümlü paslanmaz çelik boru kaynar su borusu Standart: GB12771-91, ASTM A1053/A1053M-06, ASTM A268/A268M-05A, ASTM A269-07 ASTM A270-03A, ASTM A312/A312M-06, ASTM A358/A358M-05, Kimyasal bileşim % max Malzeme C M P S Evet. Kr Ni Mo. Ti TP304 0.08 2 0.045 0.03 1 18...
Ürün Ayrıntıları
Vurgulamak:
ASTM A789 316 Paslanmaz Çelik Boru
,A789M-05B 316 Paslanmaz Çelik Boru
,ASTM A789 304 Paslanmaz Çelik Boru
Material:
304 316
MOQ:
1 TON
Delivery Time:
30 gün
Length:
<12m veya müşteri talebi olarak
Ürün Tanımı
ASTM A789/A789M-05B kare yuvarlak bölümlü paslanmaz çelik boru kaynar su borusu
Standart:
GB12771-91, ASTM A1053/A1053M-06,
ASTM A268/A268M-05A, ASTM A269-07
ASTM A270-03A, ASTM A312/A312M-06, ASTM A358/A358M-05,
| Kimyasal bileşim % max | |||||||||
| Malzeme | C | M | P | S | Evet. | Kr | Ni | Mo. | Ti |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18-20 | 8-11 | - | - |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18-20 | 8-12 | - | - |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16-18 | 10-14 | 2-3 | - |
| TP316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16-18 | 10-15 | 2-3 | - |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17-19 | 9-12 | - | 0.7 |
Dış çap: 10 mm - 100 mm
Tolerans: ASTM A304/A316 standardına göre
Kalınlığı:0.6mm - 12mm,
Tolerans: +/- 5%
Uzunluk:5.8 metre veya 6 metre veya özel,
Tolerans: ± 0,5 mm
İşlem Yöntemi
A304:Çizilmiş kod, Parlak kızartma, İçeriden boncuk çıkarma
A316: Kod çizilmiş, parlak kızartma
Bitirme:
Parlak kızartma
Saten / Püresi / fırçalı / Saç çizgisi HL: 180 grit, 240 grit, 320 grit
Parlaklık: 400 grit, 600 grit, ayna: 800 grit / 8K
