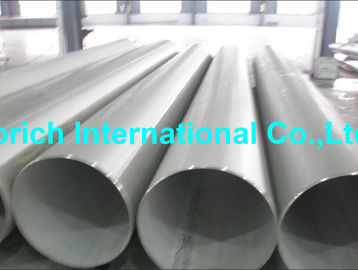

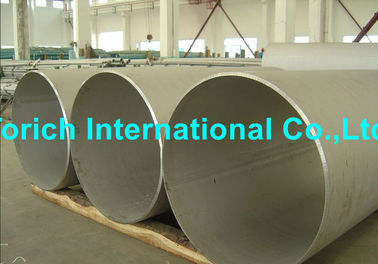

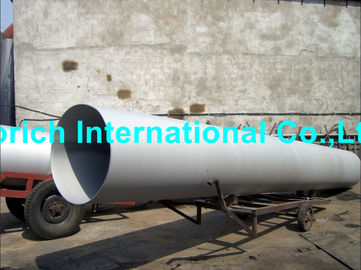

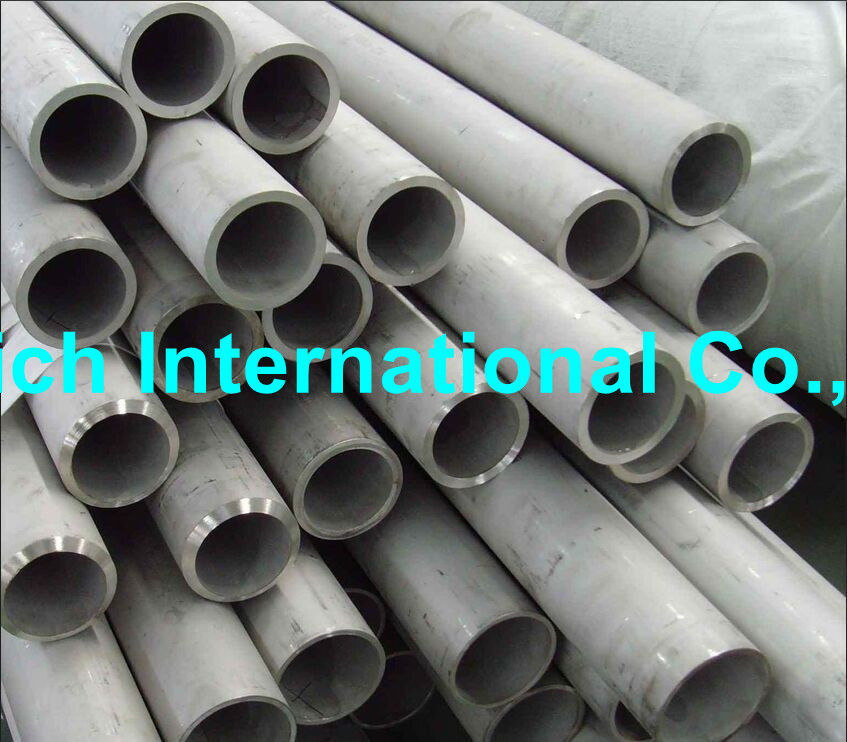

| Marka Adı: | Torich |
| Model Numarası: | Standart: ASTM A688 |
| Adedi: | 1 ton |
| Mekanik Gereksinim | |||||||||
| Sınıf: | TP304 | TP304L | TP304LN | TP316 | TP316L | TP316LN | TP316LN | TPXM-29 | TP304N |
| UNS | S30400 | S30403 | S30453 | S31600 | S31603 | S31653 | S31653 | S24000 | S30451 |
| C, maks. | 0.08 | 0.035 | 0.035 | 0.080 | 0.035 | 0.035 | 0.035 | 0.08 | 0.080 |
| Mn, maks. | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 11,5-14,5 | 2.00 |
| P, maksimum | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.060 | 0.045 |
| S, maks | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
| Si, maks | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Ni | 18,0-20,0 | 18,0-20,0 | 18,0-20,0 | 16,0-18,0 | 16,0-18,0 | 16,0-18,0 | 16,0-18,0 | 17,0-19,0 | 18,0-20,0 |
| Cr | 8,0-11,0 | 8,0-13,0 | 8,0-12,0 | 11,0-14,0 | 10,0-14,0 | 11,0-14,0 | 11,0-14,0 | 2,3-3,7 | 8,0-18,0 |
| Mo | ... | ... | ... | 2,00-3,00 | 2,00-3,00 | 2,00-3,00 | 2,00-3,00 | ... | ... |
| Azot | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| Bakır | ... | ... | ... | ... | ... | ||||
| Sınıf: | TP316N | ... | ... | ... | ... |
| UNS | S31651 | N08367 | N08926 | S31254 | S32654 |
| C, maks. | 0.070 | 0.030 | 0.020 | 0.020 | 0.020 |
| Mn, maks. | 2.00 | 2.00 | 2.00 | 1.00 | 2,0-4,0 |
| P, maksimum | 0.045 | 0.040 | 0.030 | 0.030 | 0.030 |
| S, maks | 0.030 | 0.030 | 0.010 | 0.100 | 0.005 |
| Si, maks | 4,8-6,0 | 1.00 | 0.50 | 0.80 | 0.50 |
| Ni | 9.58.0 | 20,0-22,0 | 24,0-26,0 | 19,5-20,5 | 21,0-23,0 |
| Cr | 19,0-22,0 | 23,5-25,5 | 19,0-21,0 | 17,5-18,5 | 24,0-25,0 |
| Mo | 0,30-1,50 | 6.0-7.0 | 6.0-7.0 | 6,0-6,5 | 7.0-8.0 |
| Azot | ... | ... | ... | ... | 0,45-0,55 |
| Bakır | ... | ... | ... | 0,30-0,60 |
| Gerilme Gereksinimleri | ||||||||
| Not ve uns | Gerilme direnci min ksi [Mpa] | Akma dayanımı min ksi [Mpa] | uzama 2 inç veya 50 mm min% içinde | |||||
| 304, 316 S30400, S31600 | 75 [515] | 30 [205] | 35 | |||||
| 304L, 316L S30403, S31603 | 70 [485] | 25 [175] | 35 | |||||
| XM-29 S24000 | 100 [690] | 55 [380] | 35 | |||||
| 304N, 316N S30451, S31651 | 80 [550] | 35 [240] | 20 | |||||
| 304LN, 316LN S30453, S31653 | 75 [515] | 30 [205] | 35 | |||||
| N08367 | 100 [690] | 45 [310] | 30 | |||||
| N08367 t: 0.187 | 95 [655] | 45 [310] | 30 | |||||
| N08926 | 94 [650] | 45 [310] | 35 | |||||
| S31254 t≤0,87 | 100 [690] | 45 [310] | 35 | |||||
| S21254 t, 0,187 | 95 [655] | 45 [310] | 35 | |||||
| S32654 | 120 [825] | 65 [450] | 40 | |||||
| Boyutlarda İzin Verilen Varyasyonlar | |||||||||
| grup | Boyut, Dış Çap, (mm) olarak | Dış Çapta İzin Verilen Farklılıklar, in. [Mm] | WT'deki İzin Verilen Varyasyonlar,% | Kesim Boyunda İzin Verilen Değişimler, [mm] cinsinden Üzerinde altında | |||||
| 1 | 1/2 (12.7) ye kadar, hariç | ± 0.005 [0.13] | ± 15 | 1/8 [3] | 0 | ||||
| 2 | 1/2 ila 1 1/2 (12.7 ila 38.1 hariç | ± 0.005 [0.13] | ± 10 | 1/8 [3] | 0 | ||||
| 3 | 1 1/2 - 3 1/2 (38.1 - 88.9 hariç | ± 0.010 [0.25] | ± 10 | 3/16 [5] | 0 | ||||
| 4 | 3 1/2 ila 5 1/2 (88.9 ila 139.7 hariç | ± 0.015 [0.38] | ± 10 | 3/16 [5] | 0 | ||||
| 5 | 5 1/2 ila 5 1/2 (139.7 ila 230.2 hariç | ± 0.030 [0.76] | ± 10 | 3/16 [5] | 0 | ||||
