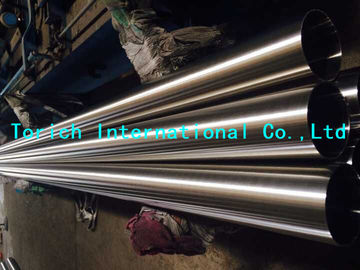

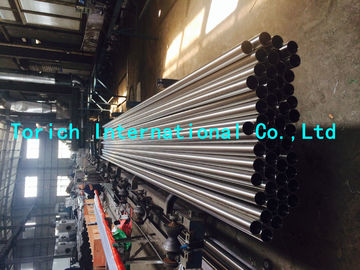

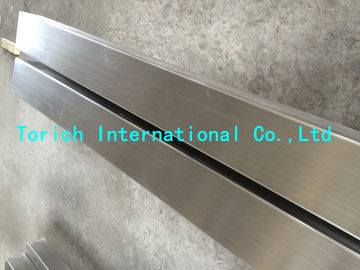

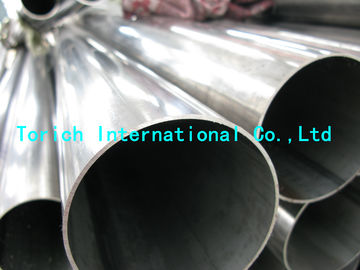

Dikişsiz Tozaltı Ark Kaynaklı Boru, Sıcak Hazır İnce Duvarlı Paslanmaz Çelik Boru
Ürün Ayrıntıları
stainless tube steel
,Büyük çaplı paslanmaz çelik boru
JIS G 3459 basınç amaçlı kaynaklı ve dikişsiz austenitik paslanmaz çelik borular
Duvar kalınlığı:0.5-50mm
Çap: 5-420 mm
Uzunluk:İstek üzerine
Sınıf:
SUS304TP, SUS304HTP, SUS304LTP,
SUS310TP, SUS310STP,
SUS316TP, SUS316HTP, SUS316LTP, SUS316TiTP,
SUS317TP, SUS317LTP,
SUS347TP, SUS347LTP
Uygulama:
basınç amaçlı,düşük sıcaklık hizmetleri,yüksek sıcaklık hizmetleri için
Üretim yöntemi:
- Yay kaynak,
- Dikişsiz lazer kaynak
- ERW ((elektrik direnci kaynak)
Isı işleme:
- hızlı soğutma
- Soğuk bitmiş
- Sıcak bitmiş
- Anilleme
- hava soğutması
- yavaş soğutma
| Kimyasal bileşim % en fazla | |||||||||
| çelik sınıfı | Kimyasal bileşim | ||||||||
|
| C | Evet. | M | P | S | Ni | Kr | Mo. | Diğerleri |
| SUS304TP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS304HTP | 0.04-0.10 | 0.75 | 2.00 | 0.040 | 0.030 | 8.00-11.00 | 18.00-20.00 | - | - |
| SUS304LTP | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 9.00-13.00 | 18.00-20.00 | - | - |
| SUS310TP | 0.150 | 1.50 | 2.00 | 0.040 | 0.030 | 19.00-22.00 | 24.00-26.00 | - | - |
| SUS310STP | 0.080 | 1.50 | 2.00 | 0.045 | 0.030 | 19.00-22.00 | 24.00-26.00 | - | - |
| SUS316TP | 0.080 | 1.000 | 2.00 | 0.045 | 0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS316HTP | 0.04-0.10 | 0.750 | 2.00 | 0.030 | 0.030 | 11.00-14.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS316LTP | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 12.00-16.00 | 16.00-18.00 | 2.00-3.00 | - |
| SUS316TiTP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | Ti5*C% min |
| SUS317TP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - |
| SUS317LTP | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - |
| SUS347TP | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 9.00-13.00 | 17.00-19.00 | - | Nb 10*C% min |
| SUS347LTP | 0.04-0.10 | 1.00 | 2.00 | 0.030 | 0.030 | 9.00-13.00 | 17.00-20.00 | - | Nb 8*C%-1.00 |
| Mekanik Özellikler min | |||
| Çelik sınıfı | Çekim gücü Mpa | Çekim noktası veya kanıt gerginliği Mpa | Uzunluk % |
| SUS304TP | 520 | 205 | 35 |
| SUS304HTP | 520 | 205 | 35 |
| SUS304LTP | 480 | 175 | 35 |
| SUS310TP | 520 | 205 | 35 |
| SUS310STP | 520 | 205 | 35 |
| SUS316TP | 520 | 205 | 35 |
| SUS316HTP | 520 | 205 | 35 |
| SUS316LTP | 480 | 175 | 35 |
| SUS316TiTP | 520 | 205 | 35 |
| SUS317TP | 520 | 205 | 35 |
| SUS317LTP | 480 | 175 | 35 |
| SUS347TP | 520 | 205 | 35 |
| SUS347HTP | 520 | 205 | 35 |
-
