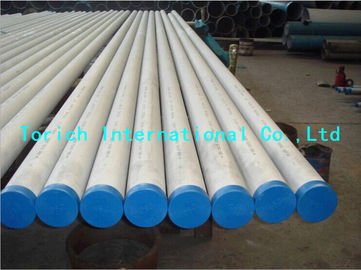

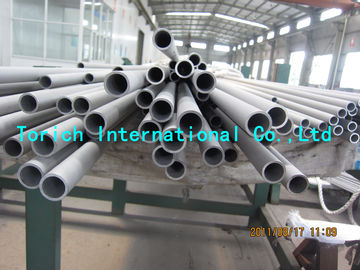

Genel Amaçlı Dikişsiz Yuvarlak Paslanmaz Çelik Borular ISO 9001 Onaylı
Ürün Ayrıntıları
stainless tube steel
,Büyük çaplı paslanmaz çelik boru
DIN 17456 Genel amaçlı dikişsiz dairesel paslanmaz çelik borular
Bu standart, DIN 17440 DIN 17441, DIN 17457 ve
DIN 1745 (Temmuz 1985 baskısı) DIN 17440, Aralık 1972 baskısını değiştirir
Uygulama:Genel amaçlı dikişsiz dairesel borular ve borular
| Sınıf | Madde | Çekim testi MPa veya N/mm2 | Notlar (JIS'e Benzer) | Mümkün Sıcaklık | |
| Min Üretim noktası | Çekim Gücü | ||||
| X6CrTi12 | 1.4512 | 190 | 390~560 | - |
|
| X6CrAl13 | 1.4002 | 250 | 400~600 | SUS405TP |
|
| X5CrNi1911 | 1.4006 | 250 | 450~650 | - |
|
| X6Cr17 | 1.4016 | 270 | 450~650 | - |
|
| X6CrTi17 | 1.4510 | 270 | 430 ~ 600 | - |
|
| X5CrNi1810 | 1.4301 | 195 | 500~720 | - |
|
| X2CrNi1911 | 1.4306 | 180 | 460~680 | - |
|
| X2CrNiTi1810 | 1.4311 | 270 | 550 ~ 760 | - |
|
| X6CrNiTi1810 | 1.4541 | 200 | 500~730 | - |
|
| X5CrNiNB1810 | 1.4550 | 205 | 510~740 | - |
|
| X5CrNiMo17122 | 1.4401 | 205 | 510~710 | SUS316TB |
|
| X2CrNiMo17132 | 1.4404 | 190 | 490~690 | SUS316HTB |
|
| X6CrNiMoTi17122 | 1.4571 | 210 | 500~730 | SUS321TB |
|
| X2CrNiMoN17133 | 1.4429 | 295 | 580~800 | - |
|
| X2CrNiMo18143 | 1.4435 | 190 | 490~690 | - |
|
| X5CrNiMo17133 | 1.4438 | 205 | 510~710 | - |
|
| X2CrNiMoN17135 | 1.4439 | 285 | 580~800 | - |
|
-
DOM Üretimi ile Auto Parts ASTM A513 Soğuk Haddeleme Kaynaklı Çelik Borular
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
Hidrolik Sistemler için 25mm Çaplı Parlak Tavlama Dikişsiz Çelik Boru
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Hidrolik Sistemler İçin Hassas Dikişsiz Siyah Fosfatlama Çelik Boru
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Hassas Dikişsiz Galvanizli Çelik Borular DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
