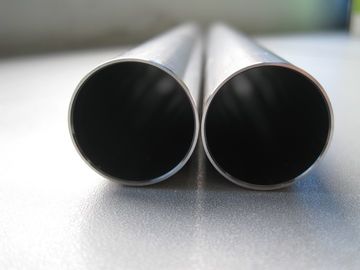

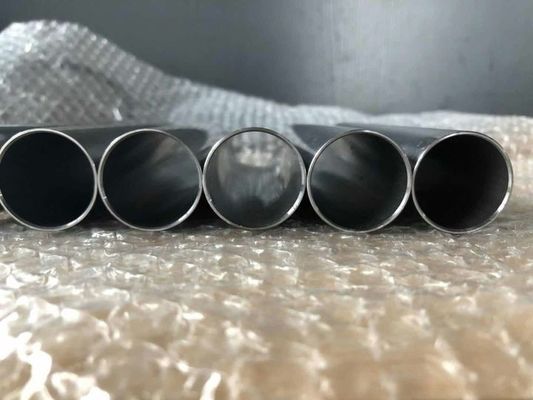

St52 E355 Soğuk Çekilmiş 16mm Dış Çap 5.5 İç Çap Hassas Dikişsiz Hollow Çelik Boru
Temel Özellikler
Menşe Yeri:
Zhejiang Çin
Marka Adı:
TORICH
Sertifikasyon:
ISO 9001
Model Numarası:
Ck45
Ticaret Mülkleri
Minimum Sipariş Miktarı:
1 TON
Fiyat:
USD 1500-2000 Per Ton
Ödeme Şartları:
L / C, D / A, D / P, T / T, Western Union, MoneyGram
Tedarik Yeteneği:
Ayda 500 ton
Ürün Özetleri
St52 E355 Soğuk çekilmiş 16 mm Dış çapı 5.5 İç çapı hassaslıklı dikişsiz boş çelik boru Standart DIN2391, EN10305-1,ASTM A 179 ASTM A 192 ASTM A519 Malzeme E355/SAE1026/Q355B/Q355D/CK45/ST52/ASTM A 106 GR.B ((ST45) Dış çapı 10mm-325mm Duvar kalınlığı 1mm-40mm Uzunluk 3-12m, rastgele veya sabit, mü...
Ürün Ayrıntıları
Vurgulamak:
hassas çelik boru
,hassas dikişsiz boru
Thickness:
3 - 25 mm mm
Application:
Hidrolik Boru
Outer Diameter(Round):
20-480 mm mm
Length:
<12m veya müşteri talebi olarak
Ürün Tanımı
St52 E355 Soğuk çekilmiş 16 mm Dış çapı 5.5 İç çapı hassaslıklı dikişsiz boş çelik boru
| Çelik sınıfı | C | Evet. | M | P≤ | S≤ | Cu≤ | Ni≤ | Cr≤ | Mo≤ | V≤ |
| ASTM A106 B | ≤0.3 | / | ≤1.2 | 0.05 | 0.06 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| ST35 | ≤0.18 | 0.15-0.35 | 0.35-0.65 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST45 | ≤0.25 | 0.15-0.35 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST52 | ≤0.2 | ≤0.55 | ≤1.5 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| CK45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
|
Çelik sınıfı
| Rm MPa | ReH Mpa |
| ST45 | ≥520 | ≥375 |
| ST52 ((E355) | ≥600 | ≥520 |
| SAE1026 | ≥600 | ≥510 |
| 16Mn | ≥600 | ≥520 |
| 20# | ≥520 | ≥375 |
