Parlak Bitmiş Cilalı 4130 4140 42CrMo4 QT Hidrolik Ck45 C45E Sert Krom Yuvarlak Çubuk/Çelik Çubuk/Piston Mili
Ürün Ayrıntıları
4140 Çelik Yuvarlak Çubuk
,4130 Çelik Yuvarlak Çubuk
,Torich Çelik Yuvarlak Çubuk

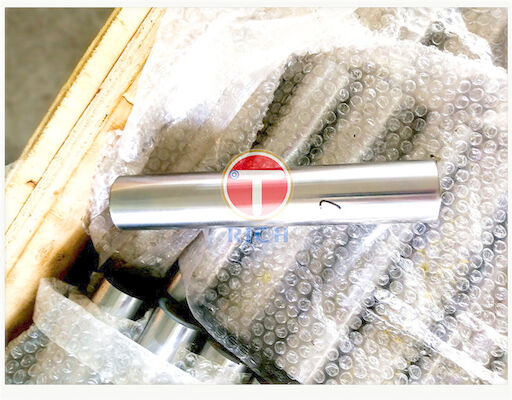

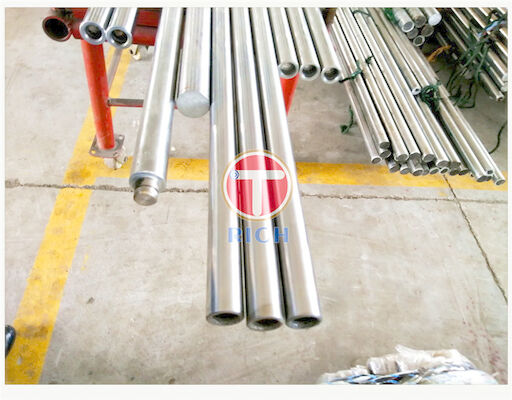

TORICH parlak bitmiş cilalı 4130 4140 42CrMo4 QT Hidrolik Ck45 C45E Sert krom yuvarlak çubuk/çelik çubuk/piston çubuğu
Aşırı doz:6-300 mm
Uzunluk1-9m
Malzeme:CK45/ST52/20MnV6/42CrMo/40Cr/Yüklü çelik/ paslanmaz çelik/4140 4130 45# 1045 S45C GCr15
Chrome kalınlığı:20-30 mikron
Krom katmanının sertliği:800HV ((min)
Isı işleme:QT Anillik
Düz:0.2/1000mm
Yüzey kabalığı:Ra 0.2 mikron ((max)
Yüzey kaplama: Sert kromlanmış
Dayanıklılıkf7
Verim gücü:≥350Mpa
Çekim Gücü:≥580Mpa
Uzunluk:≥15%
Tedarik koşulları:1.Sert kromlanmış
2.Indüksiyon sertleştirilmiş
3.Sıkıştırılmış ve Tempered
4.Q&T ile indüksiyon sertleştirilmiş
Açıklama:
Malzeme
| Malzeme | % | % | % | S% | P% | V% | Cr% |
| Ck45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 |
| ≤0.25 |
| ST52 | ≤0.22 | ≤1.6 | ≤0.55 | ≤0.04 | ≤0.04 | 0.02-0.15 |
|
| 20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 |
| 42CrMo4 | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.07-0.12 | 0.90-1.20 |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 |
| 0.80-1.10 |
4Mekanik Özellikler
| Malzeme | T.S. N/MM2 | Y.S. N/MM2 | E% ((MIN) | CHARPY | Durum |
| CK45 | 610 | 355 | 15 | >41J | Normalleştir. |
| CK45 | 800 | 630 | 20 | >41J | Q + T |
| ST52 | 500 | 355 | 22 |
| Normalleştir. |
| 20MnV6 | 750 | 590 | 12 | >40J | Normalleştir. |
| 42CrMo4 | 980 | 850 | 14 | >47J | Q + T |
| 40Cr | 1000 | 800 | 10 |
| Q + T |
Özellik
Yüksek tolerans
Az miktarda mevcuttur.
Müşterinin siparişine göre özel yapımı
Uygulama:
Hidrolik, pnevmatik, doğrusal eksenli, raf inşaat makineleri, plastik makineleri, malzemeler, paketleme makineleri, baskı makineleri, makine eksenli, iç hareketli.
Ambalaj:
Pamuk ahşap kutular.
-
