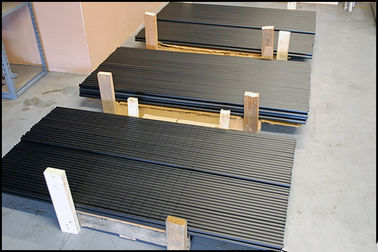

SA213 Alaşımlı Çelik Boru T5 T9 T11 T12 T22, Karbon Çelik Eşanjör Boruları
Ürün Ayrıntıları
alaşımlı çelik dikişsiz boru
,dikişsiz alaşımlı çelik boru
Alaşımlı çelik sınıfı T5 T9 T11 T12 T22
Alaşımlı çelik boru ısı değiştiricisi borular SA213
| Çelik sınıfı | C | M | P | S | Evet. | Kr | Mo. |
|
| En fazla | En fazla | En fazla | En fazla | En fazla | dakikası |
|
| T5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.0-6.0 | 0.45-0.65 |
| T9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.0-10.0 | 0.90-1.10 |
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.0-1.50 | 0.44-0.65 |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 2.65-3.35 | 0.80-1.06 |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| Çelik sınıfı | Çekim Gücü | Üretim Gücü | Uzunluk | Sertlik. Maks. |
|
| |
| Min.ksi [Mpa] | Min.ksi [Mpa] | % | Brinell/Vickers | Rockwell. |
|
|
|
| T5b | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
|
|
| T9 | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
|
|
| T12 | 60[415] | 32[220] | 30 | 163HBW/170HV | 85HRB |
|
|
| T91 | 85[585] | 60[415] | 20 | 250HBW/265HV | 25HRC |
|
|
| T92 | 90[620] | 64[440] | 20 | 250HBW/265HV | 25HRC |
|
|
-
