SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery

SAE J525 Hydraulic Tube

Thick Wall Precision Steel Tube

Mild Steel Alloy Hydraulic Tube

Marka adı:

TORICH

Sertifika:

ISO9001 ISO 14001 TS16949

Model numarası:

SAE J525

Bizimle İletişim
Teklif Et
Ürün Ayrıntıları
Başvuru:
Hassas aletler
Dış çap (yuvarlak):
30 - 426 mm,
Kalınlık:
0.1mm-100mm
Bölüm şekli:
Yuvarlak, dikdörtgen
Standart:
ASTM, DIN, GB, JIS, API
Teknik:
Soğuk çizilmiş, sıcak haddelenmiş, soğuk haddelenmiş, erw, sıcak haddelenmiş/soğuk çekilmiş
Seviye:
1020 E235 STKM11A
Uzunluk:
6m veya gereksinim olarak, müşterinin gerektirdiği gibi,
Vurgulamak:

SAE J525 Hydraulic Tube

,

Thick Wall Precision Steel Tube

,

Mild Steel Alloy Hydraulic Tube

Ödeme ve Nakliye Şartları
Min sipariş miktarı
1ton
Fiyat
800-1000USD/Ton
Ambalaj bilgileri
Demetlerde veya ahşap kutularda.
Teslim süresi
Ürünler üzerine 20-30 gün
Ödeme koşulları
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini
Yılda 60000 ton/ton
Ürün Tanımı

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 0

SAE J525 Thick Wall Mild Steel Tube – Alloy Hydraulic Tube for Precision Instruments

Material

SAE J525 tubing is manufactured from high-quality mild carbon steel, processed by electric resistance welding and then fully normalized to achieve uniform grain structure and excellent ductility. It is specifically designed as a hydraulic tube with thick walls to handle pressure applications while ensuring precision and safety.

Specifications

  • Standard: SAE J525

  • Manufacturing Process: Electric Resistance Welded (ERW), Normalized

  • Wall Thickness: Thick wall, per SAE J525 requirements

  • Shape: Round tube

  • Finish: Smooth, suitable for bending and flaring

Chemical Composition (Typical, wt%)

Grade C (%) Mn (%) P (%) S (%) Fe (%)
SAE J525 ≤0.18 0.30–0.60 ≤0.035 ≤0.035 Balance
ASTM A179 ≤0.06 0.27–0.63 ≤0.035 ≤0.035 Balance
ASTM A513 Type 5 (1020) 0.18–0.23 0.30–0.60 ≤0.040 ≤0.050 Balance
EN 10305-4 E235 ≤0.17 ≤1.20 ≤0.025 ≤0.025 Balance
JIS STKM11A ≤0.15 0.30–0.60 ≤0.030 ≤0.030 Balance

Mechanical Properties

Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Hardness (HRB)
SAE J525 290–430 ≥180 ≥35 ≤72
ASTM A179 ≥325 ≥180 ≥35 ≤72
ASTM A513 Type 5 (1020) 350–450 ≥210 ≥25 ≤85
EN 10305-4 E235 340–480 ≥235 ≥25 ≤80
JIS STKM11A ≥290 ≥180 ≥30 ≤72

Key Features

  • Excellent formability, bendability, and flare capability

  • Uniform grain structure due to full normalization

  • High dimensional accuracy and smooth internal surface

  • Reliable for hydraulic systems under pressure

  • Enhanced safety in precision instruments applications

Applicable Standards

  • SAE J525 (North America)

  • ASTM A179 / ASTM A513 (USA equivalent options)

  • EN 10305-4 (European equivalent)

  • JIS G3445 STKM series (Japanese equivalent)

  • GB/T 3639 (Chinese equivalent for precision tubes)

Applications

SAE J525 tubes are primarily used in hydraulic and pneumatic systems where safety and precision are critical.

  • Automotive Industry: Brake lines, fuel lines, hydraulic power steering systems

  • Industrial Machinery: Hydraulic cylinders, fluid power systems, lubrication lines

  • Precision Instruments: Measuring and control systems requiring high reliability

  • Construction Equipment: Hydraulic lines for excavators, loaders, and cranes

  • Aerospace & Marine: Specialized hydraulic control systems

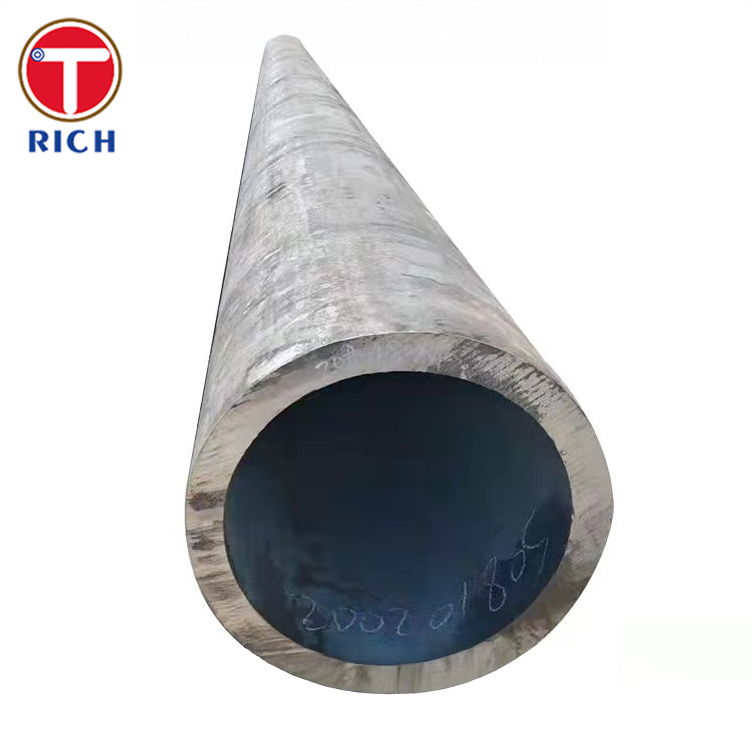

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 1

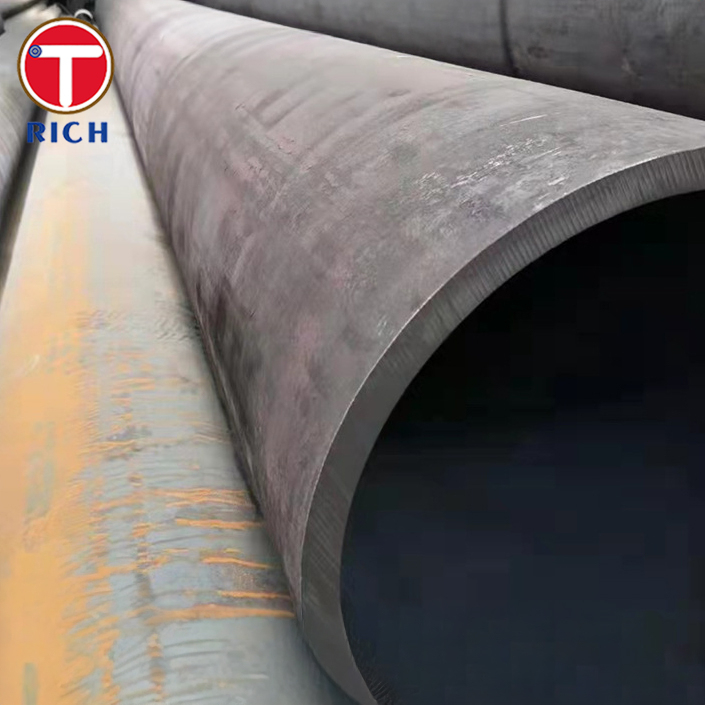

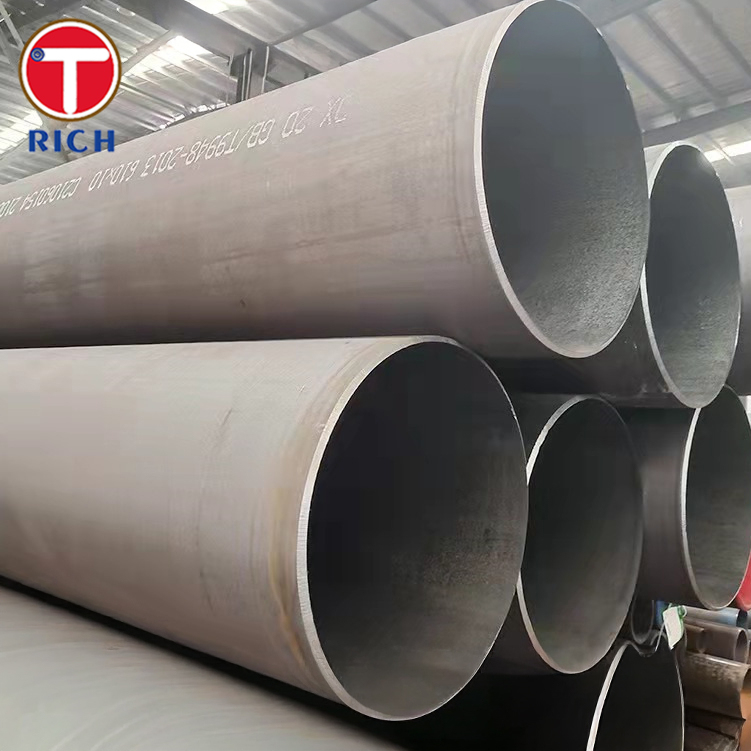

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 2     SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 3

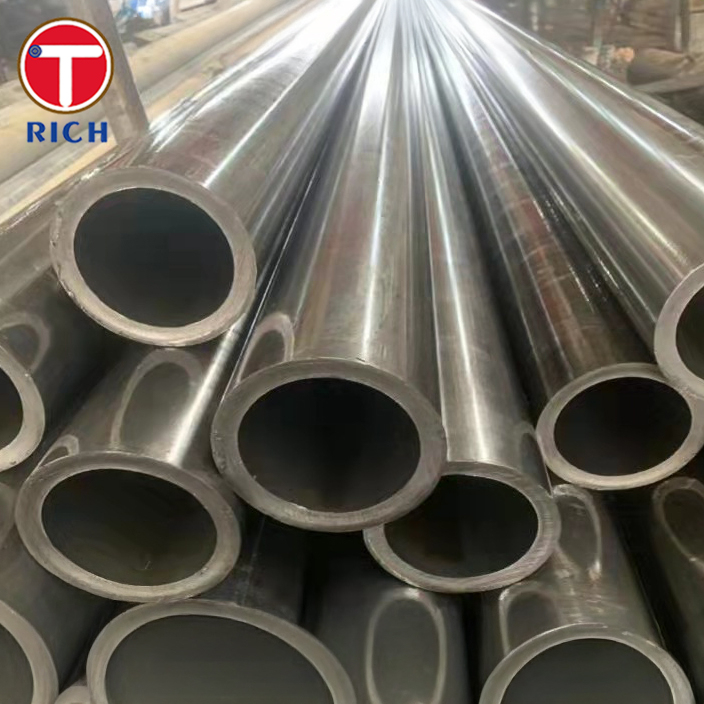

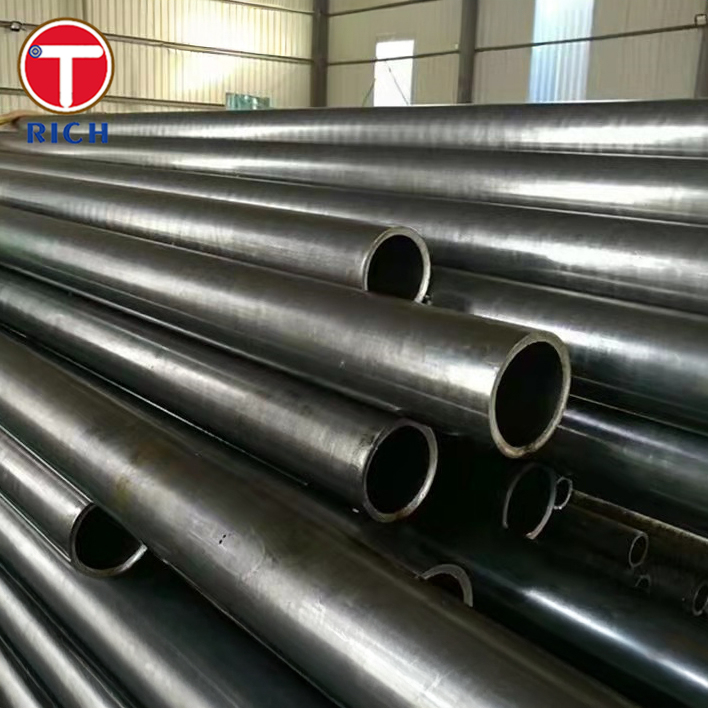

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 4     SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 5


SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 6

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 7

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 8

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 9

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 10

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.


Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,

it is according to quantity.


Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
