Hassas çelik boru

Cold Drawn Precision Steel Tube Seamless 2 - 12m Length With GB/T3639 Steel Grade/Steel Material:10#, 20#, 45#, 16Mn, SAE1010, SAE1020, SAE1045, SKTM11, ST35, ST52 etc Steel pipe standard:GB8713, GB3639, DIN2391, EN10305-1, EN10305-4, JIS-G3445, ASTM A519, etc Size:OD:10.00—110.00mm, WT:1.00—8.00mm, Length: 5.8m, 6m,9m,or as required. Technique: 1) Cold Rolled 2) Cold Drawn Characteristic: Good concentricity, Good OD and ID tolerance, High Precision, Stable quality, Smooth

EN10305-1 DIN2391 E235 Cold Drawn Precision Carbon Seamless Steel Tube For Motorcycle Shock Absorber 1.Quick Detail: Black Phosphated Hydraulic Tubes with High Precision EN10305-1, EN10305-4, DIN2391, E235, E355, ST37.0, ST44.0, ST52.0 Steel Pipes with high precision for Hydraulic Systems with Black Phosphating 2.Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is

EN10305-1 Hydraulic Precision Seamless Steel Tube Cold Drawn E335 Pipe TORICH is working on EN103051 precision seamless steel tube more than 20 years, with much experience in export. 1. Size range of precision seamless steel tube: O.D.:6-380mm W.T.:1-35mm L:max12000mm 2.Ra roughness: max 0.8μm 3. Applications: Hydraulic system 4.Steel Grade and Chemical Compositions: Steel Grade C Si Mn P S Al Steel Name Steel Number max max max max max min E215 1.0212 0.10 0.05 0.70 0.025 0

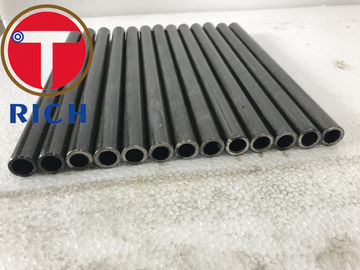

Seamless Precision Steel Tube for Motorcycle and Automotive Shock Absorber TORICH is a professional steel tubes supplier from China with over 23 years manufacturing and exporting experience. Our main products are seamless precision pipe,carbon steel seamless precision pipe,alloy steel seamless precision pipe, stainless steel seamless precision pipe.The material we usually use for producing Seamless Precision Steel Tube for Motorcycle and Automotive Shock Absorber is10#,20#

St52 E355 Cold Drawn 16mm Outer Diameter 5.5 Inner Diameter Precision Seamless Hollow Steel Tube Standard DIN2391, EN10305-1,ASTM A 179 ASTM A 192 ASTM A519 Material E355/SAE1026/Q355B/Q355D/CK45/ST52/ASTM A 106 GR.B(ST45) Outer diameter 10mm-325mm Wall thickness 1mm-40mm Length 3-12m, random or fixed, as the clients' requests Technology High precision Cold drawn/ Cold rolled Heat treatment BK/BKS/NBK Advantages 1.Short delivery time 2.Quality assurance 3.Competitive price 4

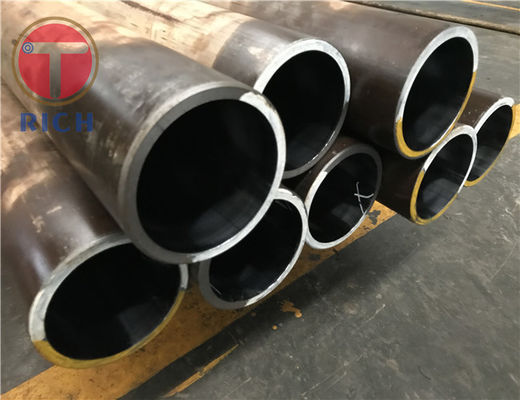

shock absorber tube CK45 seamless cold rolled steel pipe honed tube 1. Seamless steel tube and carbon tube, seamless pipe Widely used in the hydraulic cylinder of the heavy machinery, Cranes, excavator also forklifts. Material is various, mainly STKM-13CT, ST52, CK45 and AISI 1020. We can also offer as customized seamless steel tube. 2. cold drawn steel tube/cold rolled steel tube, cold drawn pipe, cold rolled pipe, cold drawn tube, cold rolled tube Grade: 20# 45# 16Mn 25Mn

Torich En10305-1 Gas Spring Used Cold Drawn Seamless Steel Pipe Tube En 10204 Chemical Composition(%) Mechanical Property C Si Mn S P Cr Ni Cu Mo Yield Strength Tensile Strength ( σs ) ( σb ) 0.07~0.14 0.17~0.37 0.35~0.65 ≤0.04 ≤0.35 ≤0.15 ≤0.25 ≤0.25 / ≥205(25) (MPa) ≥ 410(42) (MPa) End Shape Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements Surface Oiled, Galvanized, Phosphate etc Treatment Technique Cold drawn

gas spring precision seamless steel pipe DIN2391 Carbon Seamless Steel Pipe Tube German Standard: Chemical Composition Standard Steel Grade C(%) Si(%) Mn(%) S(%) P(%) DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St37 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St45 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St44 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St52 ≤0.22 ≤0.35 ≥1.60 ≤0.025 ≤0.025 Mechanical Property: Standard Steel Grade Mechanical Performance GBK(+A) NBK(+N)

TORICH EN10305-1 Automotive Components motorcycle Shock Absorber Gas Spring Steel Tube Usage Automobile;Auto,car;Furniture;Machines,mechanical equipment; Boat,container,etc. Color Sliver/Black/others Advantage 1. Pass 8,000 times fatigue 2. Samples for free 3. Competitive price 4. Quick delivery:300 pcs 7 days O.D 5-420mm W.T 0.5-50mm Length max 12000mm Applications for Auto Industry for Machinery Use for Oil Cylinder Tube for Motorcyle shock absorber TEEL GRADE AND CHEMICAL
