Otomotiv Çelik Borular

Torich JIS G3429 STH12 STH21 Automotive Precision Steel Tube Introduction: Standard: JISG3429 Type:Carbon Diameter: Od: 5-420mm, Wall thickness: 0.5-50mm length:12mmax Grade: STH 21, STH11,STH12,STH22,STH31 Produce method:Seamless Usage: Pipes are used in oil, air, etc. Feature: High pressure Chemical components: C Si Mn P S Ni Cr Mo STH11 ≤0.5 0.1-0.35 ≤1.8 ≤0.035 ≤0.035 - - - STH12 0.3-0.41 0.1-0.35 1.35-1.7 ≤0.03 ≤0.03 - - - STH21 0.25-0.35 0.1-0.35 0.4-0.9 ≤0.03 ≤0.03 ≤0

TORICH Welded Precision Steel Tube EN10305-2 E235 E355 Quick Detail: Product name Welded Precision Steel Tube EN10305-2 E235 E355 Steel Grade E155, E195, E235, E275, E355 Size Range OD range:15-200mm WT range: 0.8-16mm Tolerance OD: (+/-0.06mm) WT: (+/-0.03mm) ID surface 0.4μm Straightness ≤0.5mm/1m Roundness ≤0.5mm Regular specifications 23.2X1.6, 42X3, 25.4X0.9, 15x1, 19x1.5, 20x1, 20x1.5 Delivery Condition +C, +LC, +SC, +A, +N Standard DIN 2393, ASTM-A513-t6, EN10305, ASTM

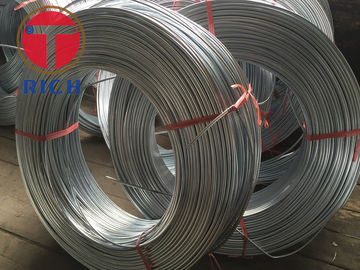

Double-Layer Coiled Pipe In Automobile Braking System And Fuel Transportation Pipeline​ SAE J526 Welded low-carbon tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems ASTM A254 Copper-brazed steel tubing BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06 O.DXThickness (mm) Min Burst Pressure (Mpa) Elongation (%) inside clearness (g/ m³) 4.76 (3/16") X 0.71 110 ≥25 ≤0.16 6 X 0.71 85 ≥25 ≤0.16 6.35 (1/4") X 0.71 78 ≥25 ≤0.16 8 X 0.71 67

Poly-Armour PVF Steel Brake/Fuel/Transmission Line Tubing Coil automotive steel pipe Automotive steel tubes Flattening&Bending Test DW No crack SW Not mentioned. Tolerance : Outside Dia: Nominal +/-0.1mm Wall thickness: Nominal +/-0.1mm Appearance : No harmful defect Automotive steel tubes material: Chemical Composition: C Mn P S 0.12Max 0.50Max 0.04Max 0.045Max Mechanical properties T.S. Y.P. E.L HR30T 30kg/mm2min 18kg/mm2min 25%min 65Max Corrosion Resistance (Hours) Zn8μm

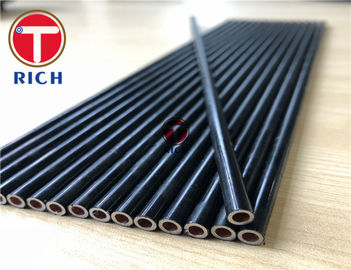

Bundy Tube Bundy Pipe PVF Coated Bundy Tubes Copper brazed double wall steel tube is made of steel strips which is copper plated on both sides.It has widely applied for automobiles,refrigerators and the other hydraulic system industries. Dimension and specification O.D. mm Thickness mm Weight g/m Assurance pressure kg/cm3 4.76 0.7 70.28 350 6.00 0.7 91.76 350 6.35 0.7 97.75 350 7.00 0.7 108.75 350 7.14 0.7 111.17 350 8.00 0.7 126.31 350 Tolerance O.D. and W.T. +/-0.08mm

Torich 20CrNiMo GCr15 OD114mm Bearing Automotive Steel Tubes Brief introduction: Size: OD: 5-114mm WT: 1-14mm Material: GCr15(52100,SUJ2,SUJ3,100Cr6, SKF3S), 20CrNiMo(8620H,4118H) SKF,30Cr13 Feature: High Dimensional Accuracy, Less Surface Decarburization, High utilization rate and stable properties Application: Automotive, electrical, instrumentation,aerospace etc. Surface condition: 1.Possible oxide skin 2.Surface oxide free skin (common annealing, pickling, passivation)

GCr15 WT 14mm High Carbon Chromium Seamless Bearing Automotive Steel Tubes Brief introduction: Size: OD: 5-114mm WT: 1-14mm Material: GCr15(52100,SUJ2,SUJ3,100Cr6, SKF3S), 20CrNiMo(8620H,4118H) SKF,30Cr13 Feature: High Dimensional Accuracy, Less Surface Decarburization, High utilization rate and stable properties Application: Automotive, electrical, instrumentation,aerospace etc. Surface condition: 1.Possible oxide skin 2.Surface oxide free skin (common annealing, pickling,

Automotive Carbon Steel Welded Pipe Mechanical Steel Tubing ASTM A513 1. Introduction: Name Welded Carbon Alloy Mechanical Tubing OD 28.6-127mm WT 0.8-2.5mm Standard ASTM A513 Usage Mechanical Tubing Material Mt1010,1020,1015, etc Packing Packing in bundles, wooden cases, woven bags, etc Payment T/T,Western Union,Money Gram Delivery FOB,CIF,CFR,CPT 2. Production process: The tubes shall be made by the electric resistance welded process and shall be made from hot or cold

TORICH ASTM A787 Q195 SAE1008 DX53 Welded Carbon Steel Mechanical Tubing Introduction: Name Welded Carbon Steel Mechanical Tubing OD 28.6-127mm WT 0.8-2.5mm Length Max12000mm Usage mechanical components,automobile, etc Technics Welded Section shape Round Material Q195,Q235,Q345,SAE1008,SAE1022,DX53,DX51,DC04,SA1C,etc Surface treatment Polished,oiled Payment T/T,L/C,Money Gram,Western Union QUALITY CONTROL: 1. Incoming Raw Material Inspection 2. Raw Material Segregation to
